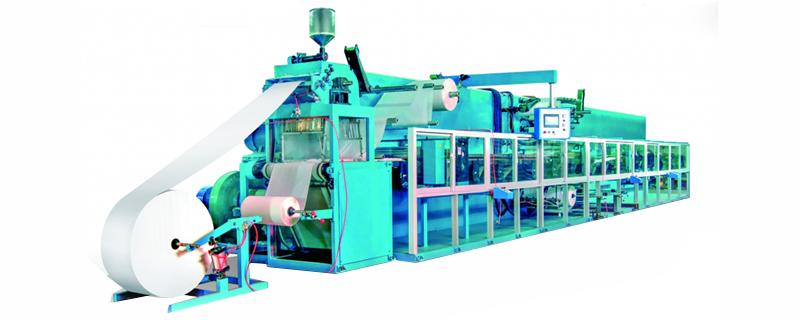

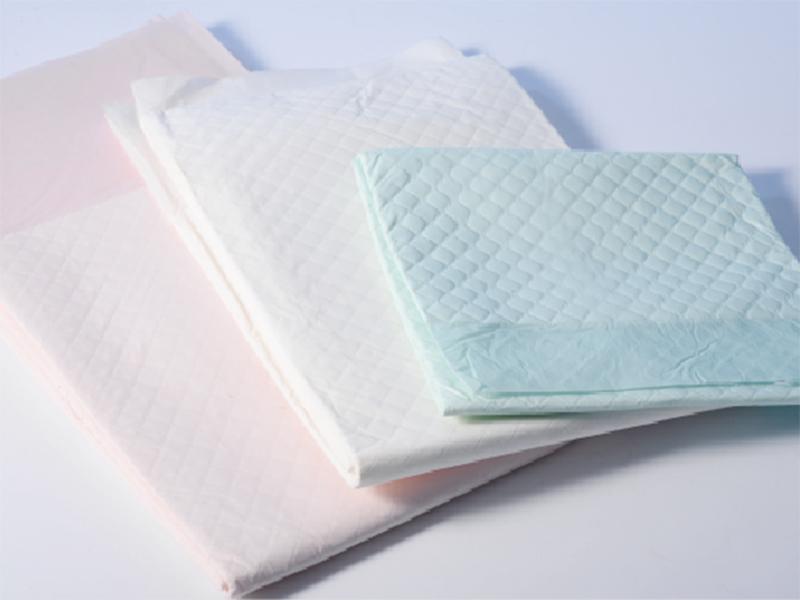

RL-HLD-150 disposable underpads production line can produce various sizes of underpads, like 600mm×900mm and 900mm×900mm. Custom size is also provided as request, with a capacity of 100-150m/min.

• Fluff pulp+SAP
• Polyethylene(PE) Film
• Tissue
• Nonwovens

• Mixing applying of fluff pulp and SAP is controlled by an inverter, offering uniform cotton core.
• Cotton core content adjustment is available while equipment runs.
• Finished underpads are automatically tri-folded, stacked, counted and discharged.
• Automatic or manual material splicer with a finial cutting unit.
• The constant tension control winder has a center unwinder, allowing for automatic splicing.
• Automatic unwinder can deals with hdrophilic non-woven fabric, PE film, etc.
• PLC system with touch screen control is easy to operate.
• Transmission system consists of sealed gearbox, universal coupling and synchronous belt, of stable transmission and good synchronism.
• Centeral
• Automatic inspection and alarms for broken materials and lacking of materials.
• Automatic rejection system for materials changeover and splicing.

• Production speed: 100-150 m/min
• Overall size: 20500mm×3000mm×4000mm

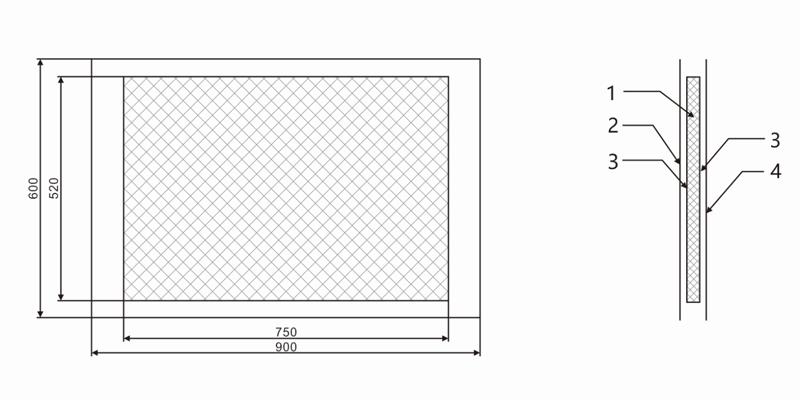

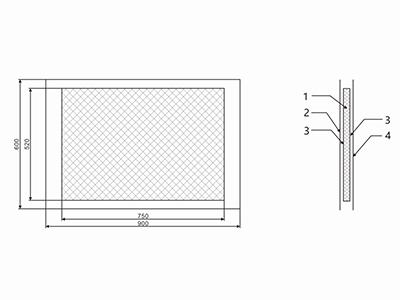

• Underpads size: 600mm×900mm, 900mm×900mm or as your need
• Power supply: three-phase 380V, 50HZ
• Weight: about 20T
• Power: ≈115kW (glue application system and air compressor excluded)
• Operator: 2-3

Note: Above data is for reference only and depends on your customized demands.
