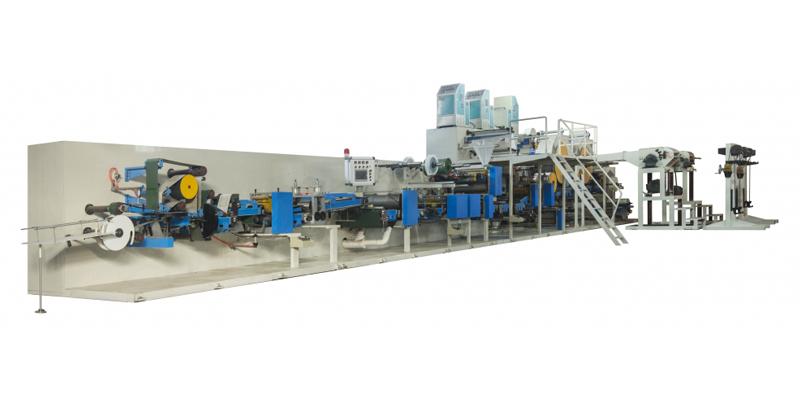

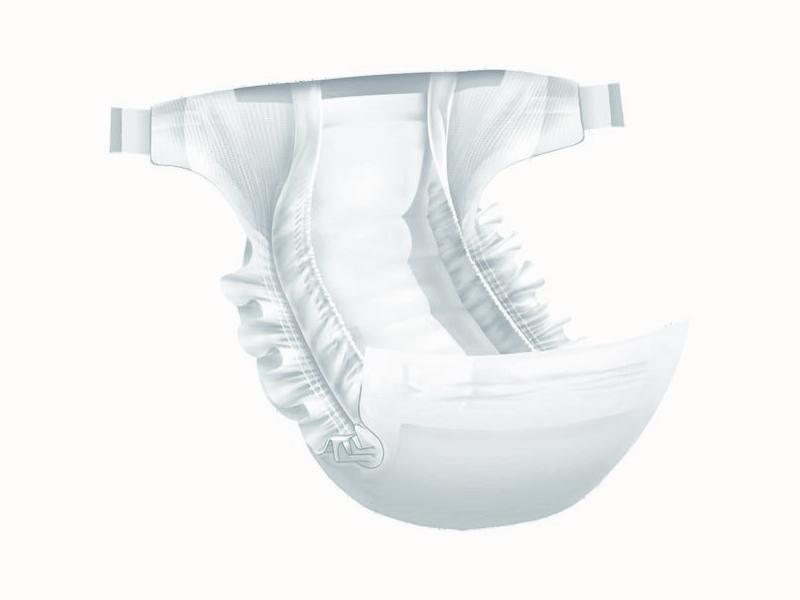

RL-CNK-100 adult diapers production line is intended for making adult diapers(adult nappies), which is composed by frontal tape, side tape, standing leak guide, leg cuffs and so on. Diapers are available in sizes of large, medium and small, with a speed of 100-120 pcs per minute.

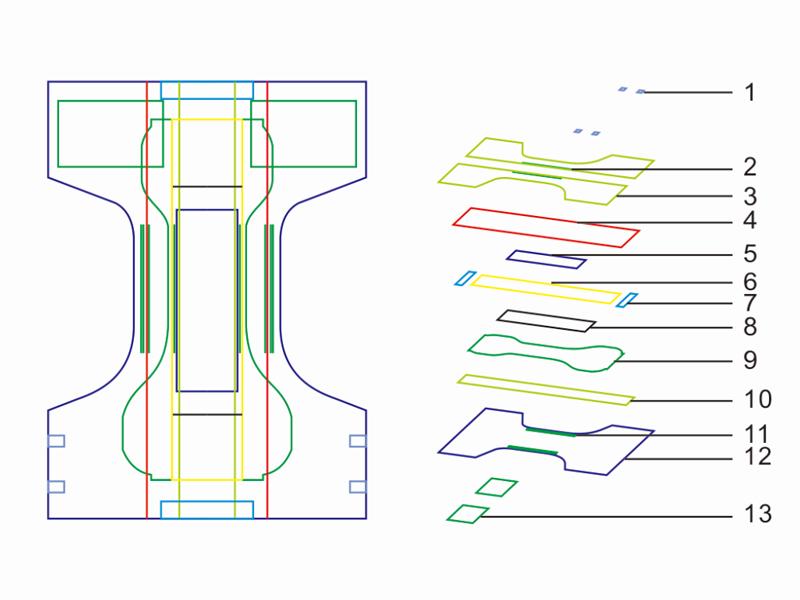

• Side tape
• Elastics
• Hydrophobic nonwoven
• Hydrophilic nonwoven
• Blue core
• Tissue
• Elastic waist band (optional)
• Middle cotton core
• Hourglass shaped cotton core
• Tissue
• Elastics
• Polyethylene(PE) Film
• Frontal tape

• This production line adopts double drum cotton core formation
• The center unwinder features automatic splicing and constant tension control.
• Automatic unwinder deals with various raw materials like hydrophobic nonwoven, hydrophilic nonwoven, PE film, etc.
• Mixing dosing of SAP
• A high efficiency pulverizer is equipped.
• Finished products are tri-folded and stacked.
• Transmission system combines sealed gearbox, universal coupling and synchronous belt.
• Gearbox applies helic bevel gear, offering stable transmission and good synchronism.
• PLC + touch screen enables easy operation.
• Inverter control system features high precision control.
• Molding and positioning process is equipped with an electronic differential to conduct synchronous regulation without closing down.

• Production speed: 100-120 m/min
• Product size: to customers’ demands
• Equipment size: 22000mm×7000mm×3900mm
• Power supply: three-phase 380V, 50HZ
• Weight: about 30T
• Power: ≈150 kW (glue applicator and air compressor excluded)
• Operators: 2-3

Note: Above data is for reference only and depends on your customized demands.
